Platform admin: tenant payments history

2026-09-07 · branch feat/platform-tenant-transactions · SkillPixel LMS platform-admin

The platform-admin app gains a Payments tab on each tenant's detail page. It lets a platform operator audit a single tenant's payment history: read a monthly summary (net revenue, failure rate, why payments fail, what sells), then filter and page through the raw transactions and open any one for full detail. The goal is operational visibility — spotting failing payments and seeing how each tenant actually sells — without touching tenant-facing surfaces. Every endpoint is read-only and tenant-scoped, and the data below is seeded demo data on the local Docker stack.

What was built

Three read-only backend endpoints under /api/v1/platform (gated by the platform-admin guard), surfaced through three Next.js proxy routes and one UI tab.

GET /tenants/{tenant_id}/transactions — paginated list (page/size, newest first). Filters: status, provider, search (nanoid / provider txn id / order code / user email + name), start_date / end_date on created_at.
GET /tenants/{tenant_id}/transactions/summary — month (YYYY-MM, default current). Zero-filled status counts, net revenue per currency, failure rate, top failure reasons, top courses.
GET /tenants/{tenant_id}/transactions/{nanoid} — full detail incl. line items, provider ids/metadata, voucher, refund, and billing snapshot. 404 if the transaction is not in that tenant (cross-tenant isolation).
UI: a Payments tab (after Usage) with a month stepper + summary cards, a filter bar, a paginated table with coloured status badges, and a per-transaction detail sheet.

Seeded data

Two demo tenants were empty, so the seed created instructor + student users, courses, and memberships, then inserted transactions spread over the last 60 days (weighted to Aug – Sep 2026), each with 1–2 line items. All inserts ran in one transaction.

Status	Tenant A	Tenant B
COMPLETED	25	3
FAILED	9	1
PENDING	4	1
PROCESSING	2	0
CANCELLED	2	0
REFUNDED	2	0
PARTIALLY_REFUNDED	1	0
Total transactions	45	5
Line items	61	7

Mix: mostly SEPAY with some ALEPAY; BANK_TRANSFER / DIGITAL_WALLET; a couple of USD amounts; several rows carry a voucher + discount; failed rows use varied reasons (some null). Users, courses and memberships were created for both tenants (Tenant A: 1 instructor + 5 students + 4 courses; Tenant B: 1 instructor + 2 students + 2 courses).

Walkthrough

Signed in as the platform admin (skillpixeldeveloper@gmail.com). Click any image to enlarge. device_scale_factor = 2.

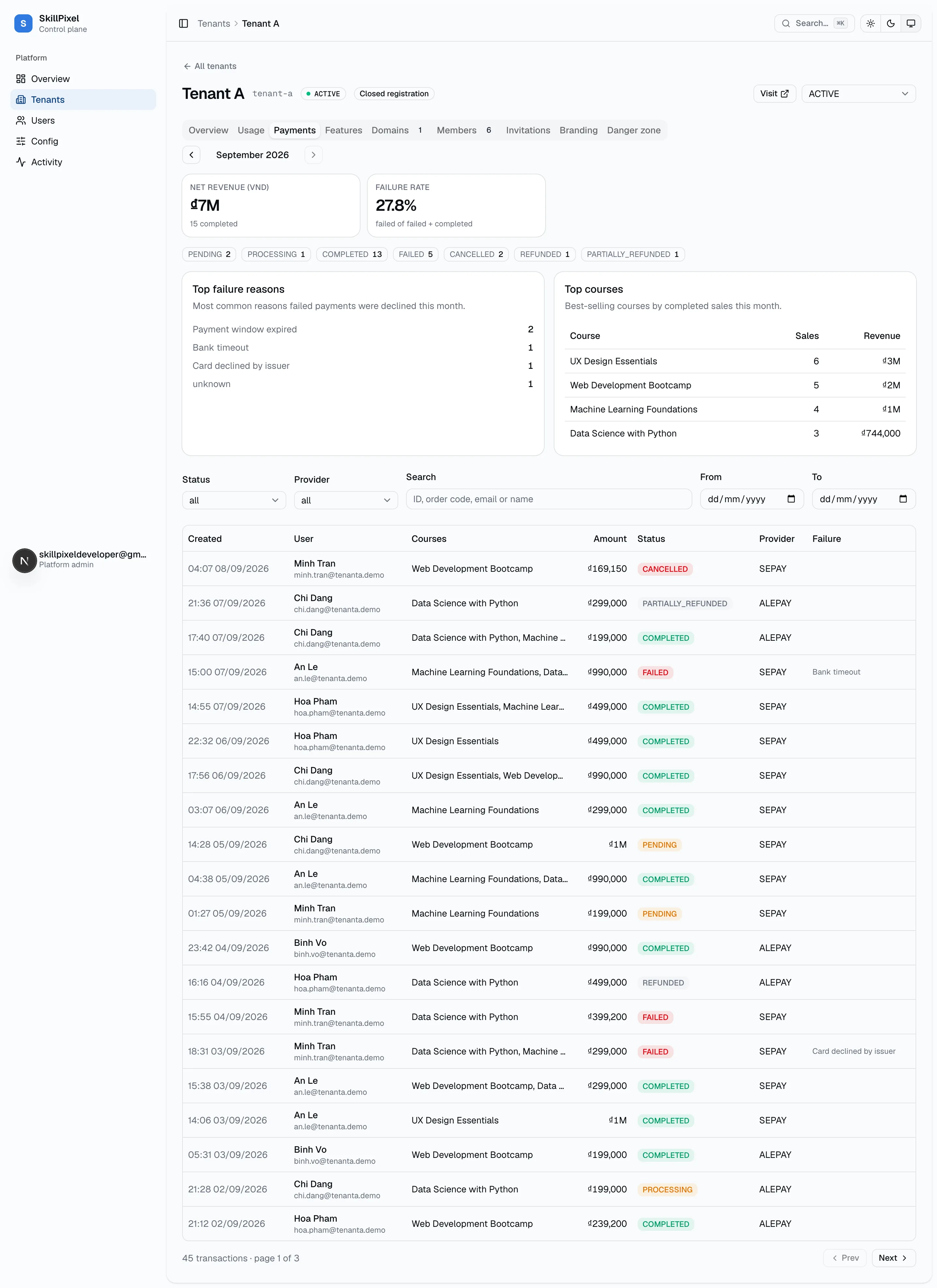

1. Payments tab — default view

Desktop 1440×900 — full page. September 2026 summary on top, then the filter bar and the transaction table (45 rows, page 1 of 3).

Mobile 360×740 — same tab. Filters stack vertically, the table scrolls inside its own container; the page itself does not scroll sideways (scrollWidth = 360).

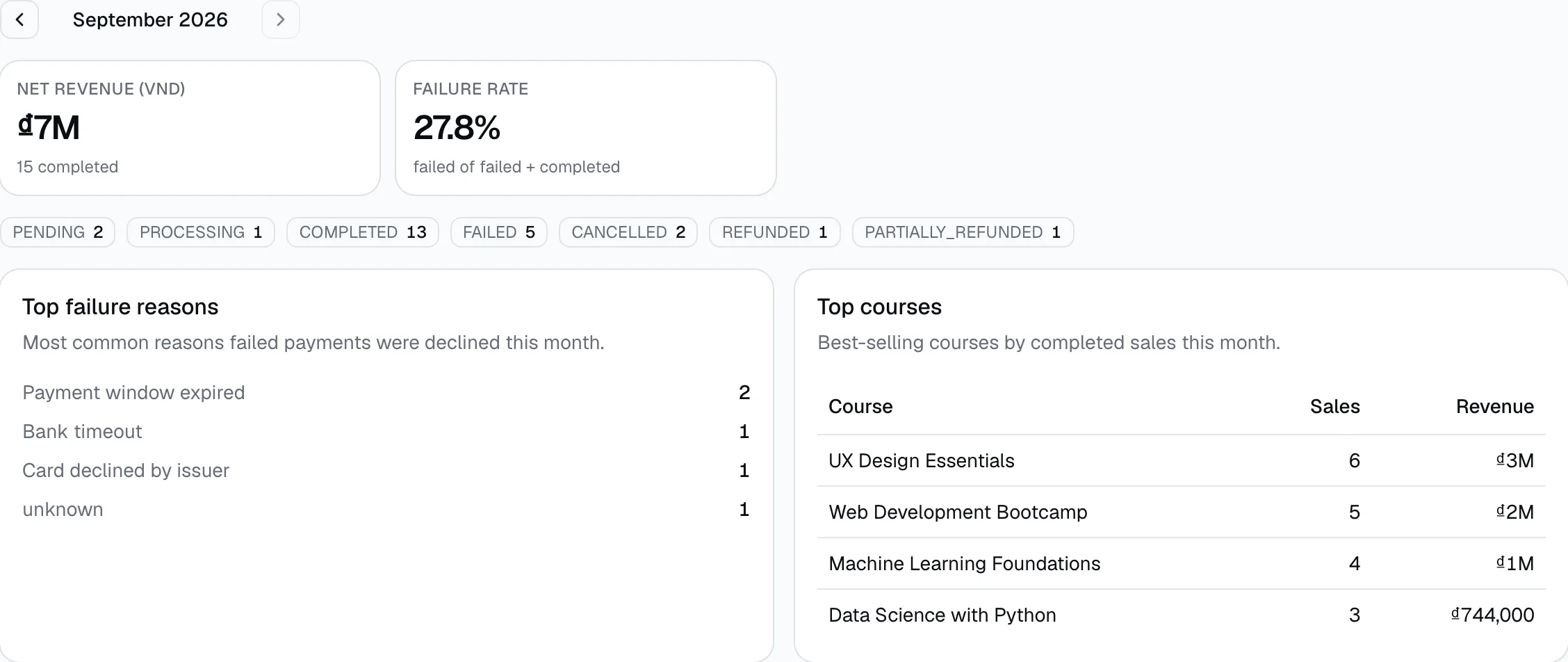

2. Summary section close-up

Net revenue per currency (net of discounts and refunds), failure rate, a status-count strip covering all seven statuses, top failure reasons, and best-selling courses this month.

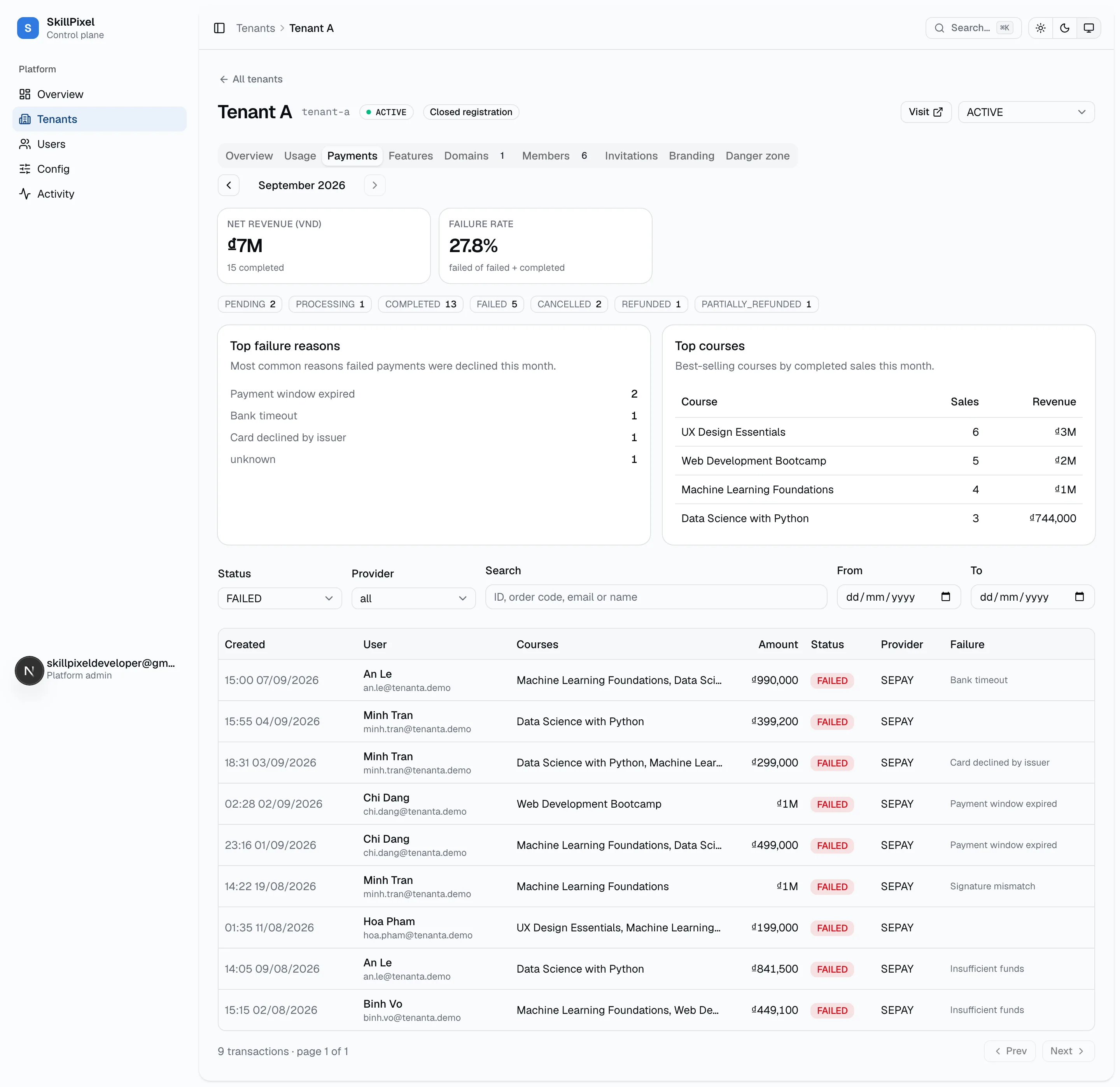

3. Filter: status = FAILED

The status select narrows the table to FAILED rows only. The Failure column shows the reason (Bank timeout, Card declined by issuer, …); rows with a null reason show blank.

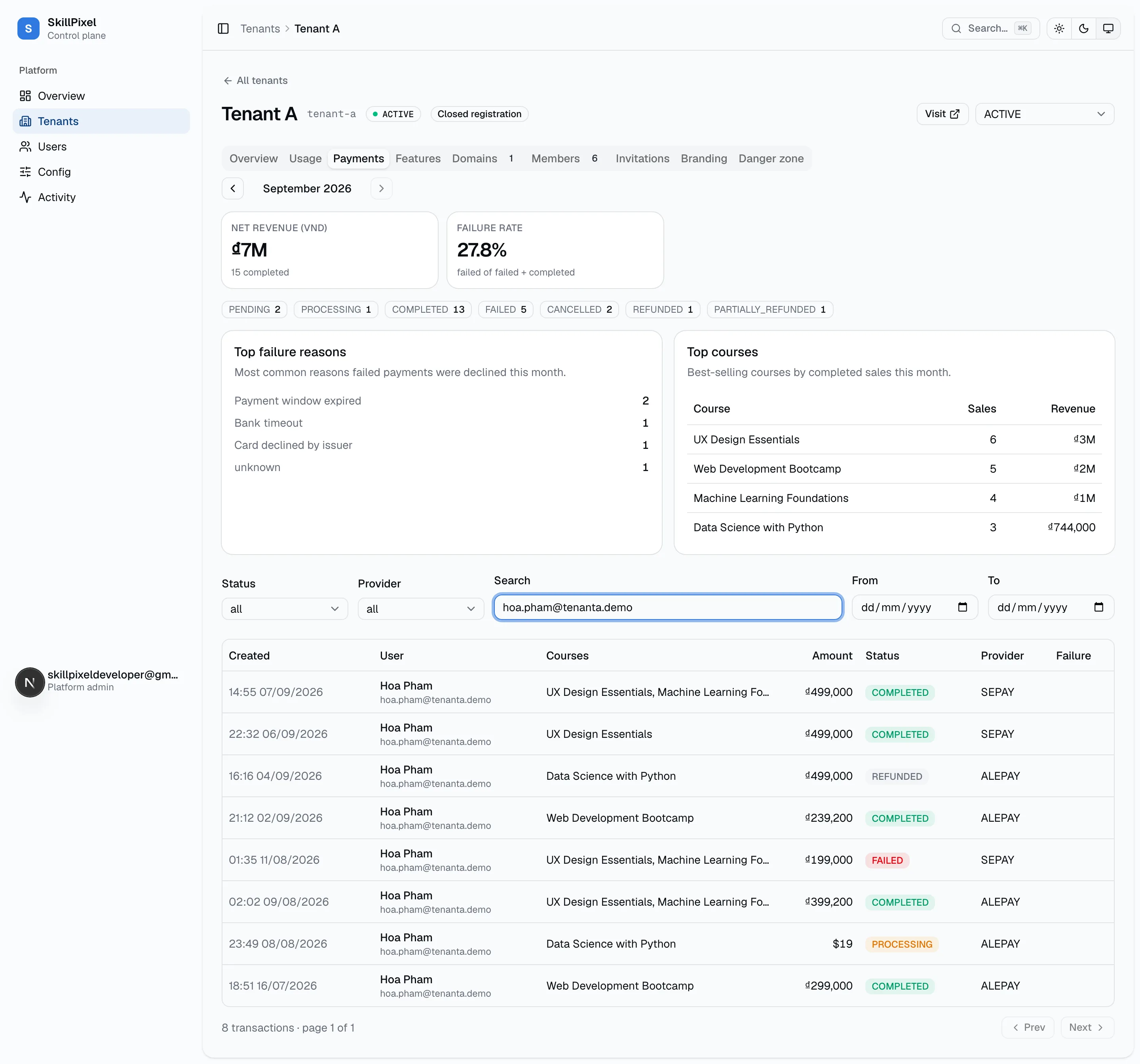

4. Search by user email

Typing hoa.pham@tenanta.demo in the search box (debounced ~300 ms) filters to that buyer's transactions. Search also matches nanoid, provider transaction id, order code, and name.

5. Date range filter

From 2026-08-01 To 2026-08-31 restricts the table to transactions created in August. The count and page total update accordingly.

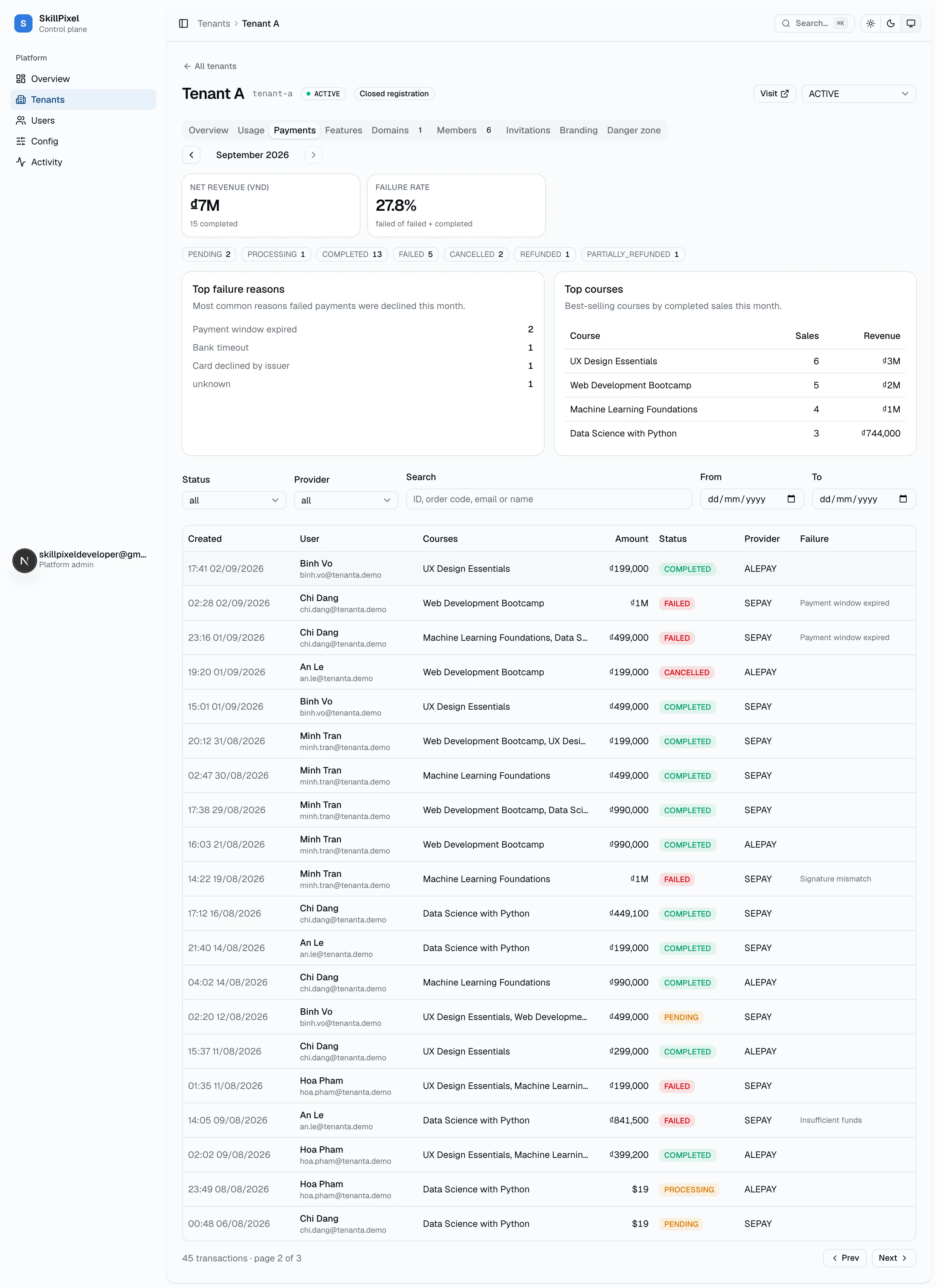

6. Pagination — page 2

Next moves to page 2 of 3 (page size 20). The footer shows the running total and the current page; Prev/Next disable at the ends.

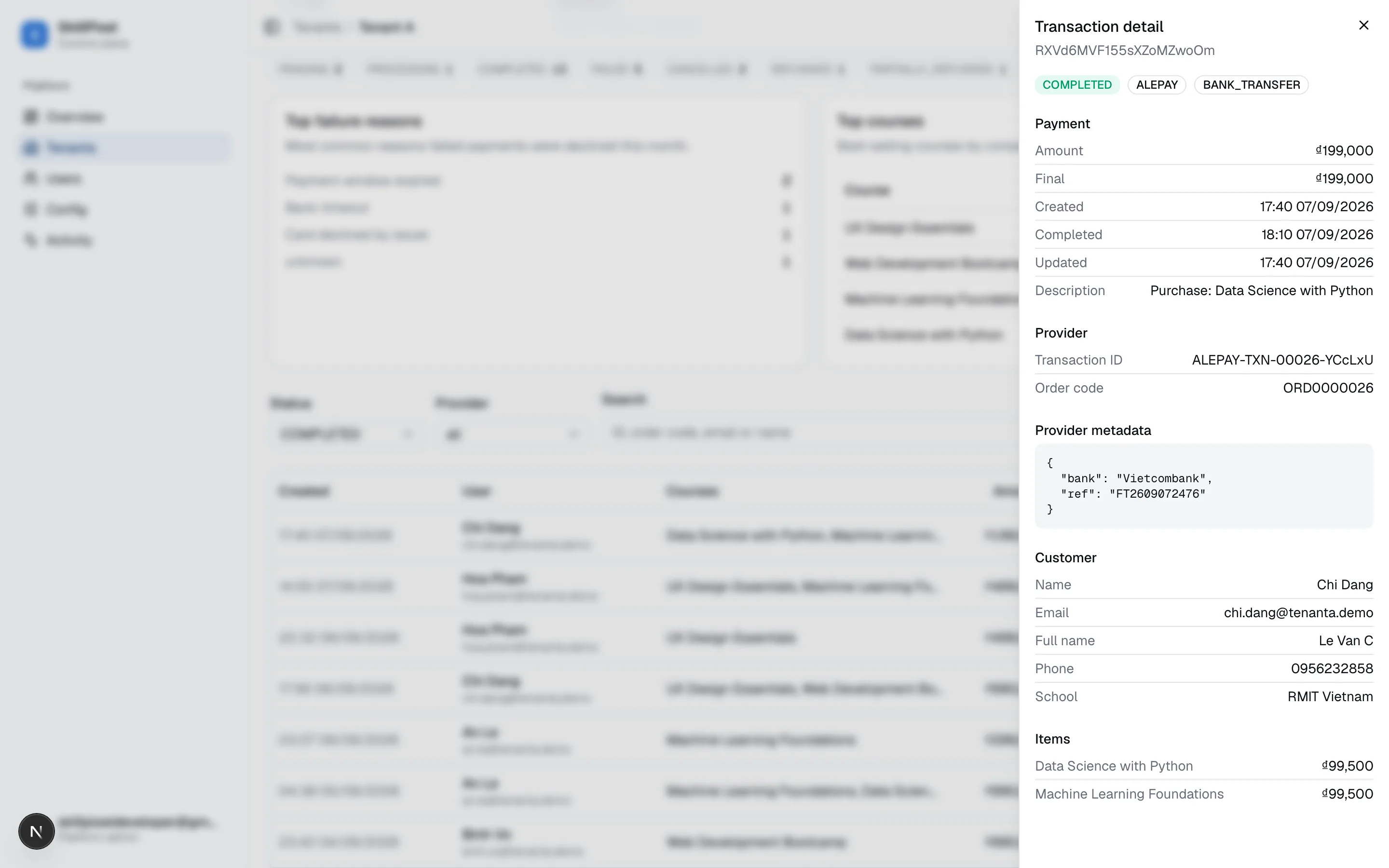

7. Detail sheet — COMPLETED

Clicking a row opens a side sheet grouped into Payment / Provider / Customer / Items, with provider metadata as formatted JSON.

Same sheet on mobile — full-width, scrolls vertically inside the sheet.

8. Detail sheet — FAILED and REFUNDED

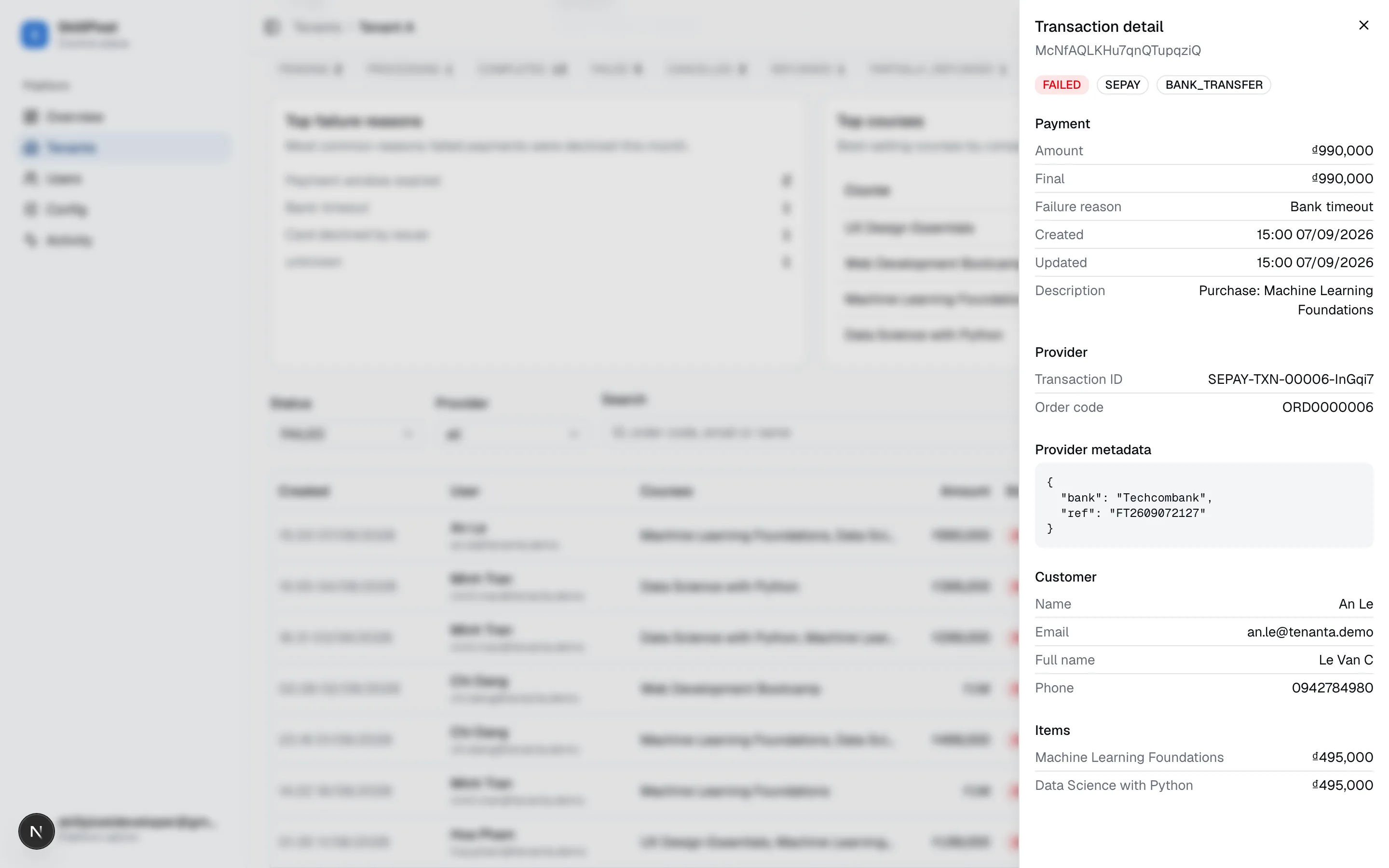

FAILED transaction — the failure reason (Bank timeout) is shown in the Payment group; provider ids and metadata are still present.

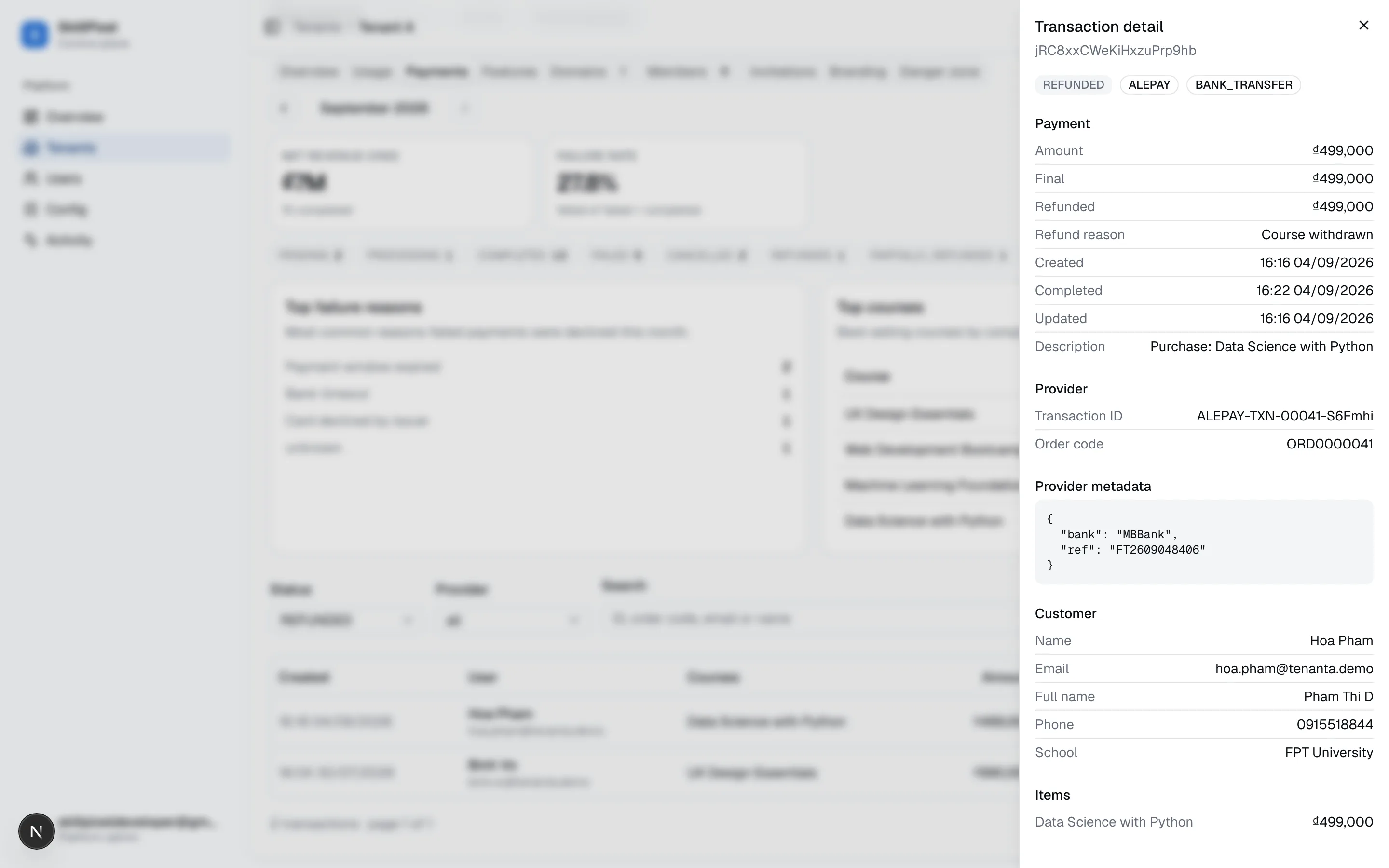

REFUNDED transaction — Refunded amount and Refund reason appear in the Payment group.

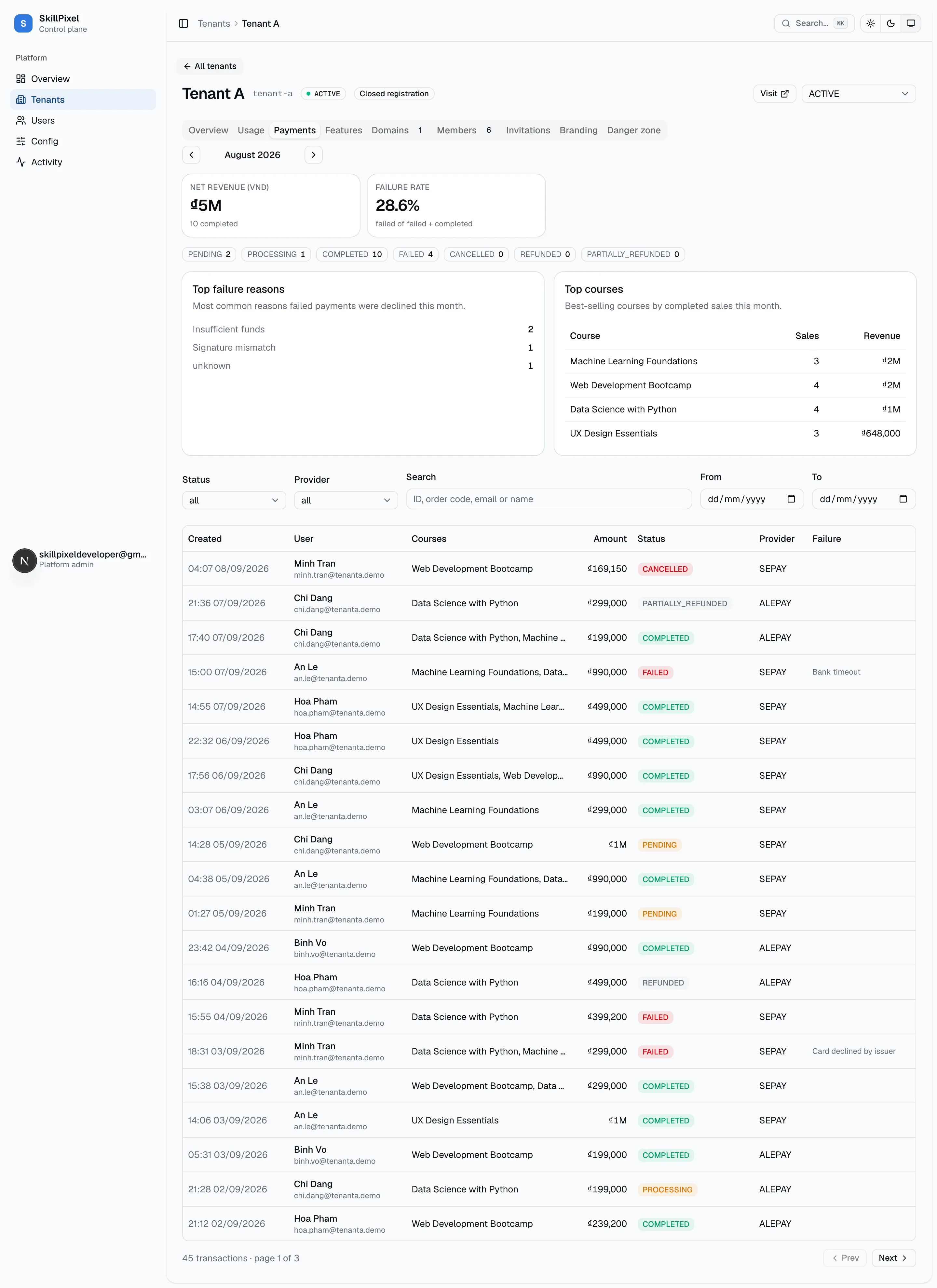

9. Month stepper — August 2026

The month arrows drive only the summary. Stepping back to August 2026 recomputes revenue, failure rate, status counts, and top courses for that month.

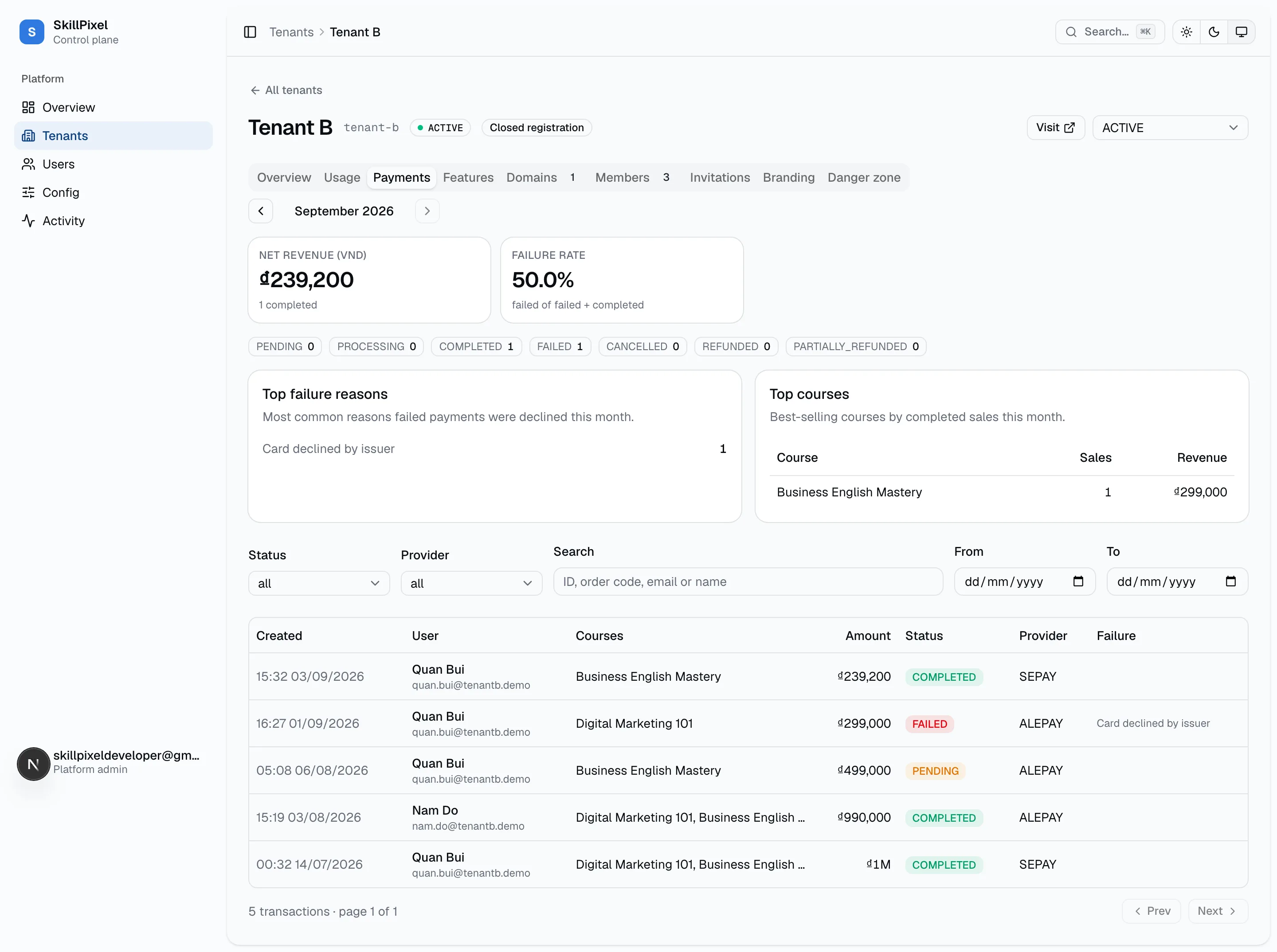

10. Tenant B — isolation

Tenant B's Payments tab shows only its own 5 transactions and its own two courses (page 1 of 1). No Tenant A data leaks across.

Tenant B on mobile — 5 rows, page scrollWidth = 360.

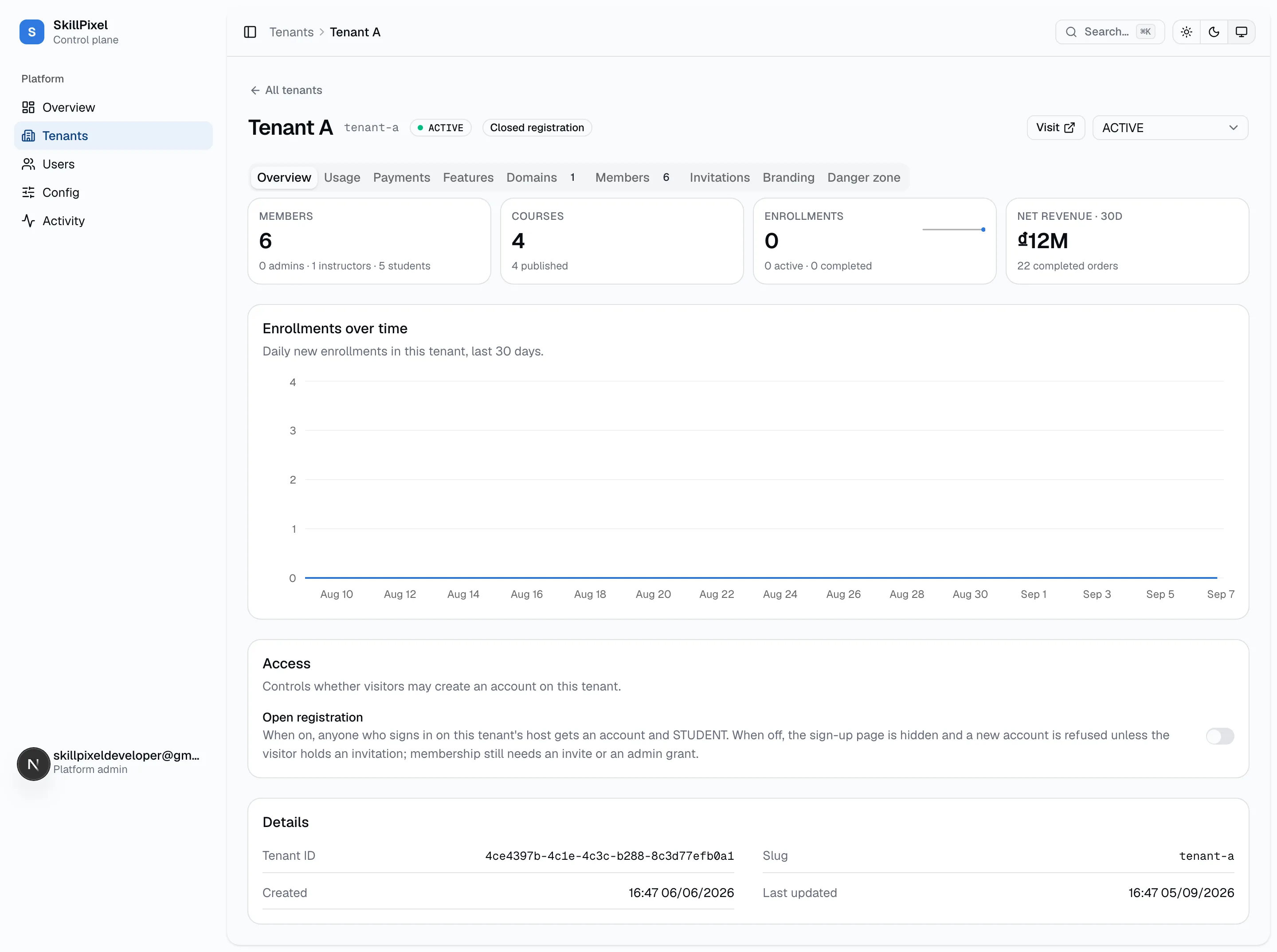

11. Overview tab — context

The tenant Overview tab, for context on where the new Payments tab sits in the tenant detail page.

API samples

Raw JSON captured by calling the backend directly with the minted id token.

GET /transactions/summary (2026-09)

{
  "month": "2026-09",
  "status_counts": {
    "PENDING": 2,
    "PROCESSING": 1,
    "COMPLETED": 13,
    "FAILED": 5,
    "CANCELLED": 2,
    "REFUNDED": 1,
    "PARTIALLY_REFUNDED": 1
  },
  "revenue_by_currency": [
    {
      "currency": "VND",
      "net_amount": 7340700,
      "completed_count": 15
    }
  ],
  "failure_rate": 0.2777777777777778,
  "top_failure_reasons": [
    {
      "reason": "Payment window expired",
      "count": 2
    },
    {
      "reason": "Bank timeout",
      "count": 1
    },
    {
      "reason": "Card declined by issuer",
      "count": 1
    },
    {
      "reason": "unknown",
      "count": 1
    }
  ],
  "top_courses": [
    {
      "course_id": "ux-design-essentials",
      "course_title": "UX Design Essentials",
      "completed_count": 6,
      "net_amount": 3231500,
      "currency": "VND"
    },
    {
      "course_id": "web-dev-bootcamp",
      "course_title": "Web Development Bootcamp",
      "completed_count": 5,
      "net_amount": 2132500,
      "currency": "VND"
    },
    {
      "course_id": "ml-foundations",
      "course_title": "Machine Learning Foundations",
      "completed_count": 4,
      "net_amount": 1143000,
      "currency": "VND"
    },
    {
      "course_id": "data-science-python",
      "course_title": "Data Science with Python",
      "completed_count": 3,
      "net_amount": 744000,
      "currency": "VND"
    }
  ]
}

GET /transactions/summary (2026-08)

{
  "month": "2026-08",
  "status_counts": {
    "PENDING": 2,
    "PROCESSING": 1,
    "COMPLETED": 10,
    "FAILED": 4,
    "CANCELLED": 0,
    "REFUNDED": 0,
    "PARTIALLY_REFUNDED": 0
  },
  "revenue_by_currency": [
    {
      "currency": "VND",
      "net_amount": 5213300,
      "completed_count": 10
    }
  ],
  "failure_rate": 0.2857142857142857,
  "top_failure_reasons": [
    {
      "reason": "Insufficient funds",
      "count": 2
    },
    {
      "reason": "Signature mismatch",
      "count": 1
    },
    {
      "reason": "unknown",
      "count": 1
    }
  ],
  "top_courses": [
    {
      "course_id": "ml-foundations",
      "course_title": "Machine Learning Foundations",
      "completed_count": 3,
      "net_amount": 1738500,
      "currency": "VND"
    },
    {
      "course_id": "web-dev-bootcamp",
      "course_title": "Web Development Bootcamp",
      "completed_count": 4,
      "net_amount": 1684000,
      "currency": "VND"
    },
    {
      "course_id": "data-science-python",
      "course_title": "Data Science with Python",
      "completed_count": 4,
      "net_amount": 1292500,
      "currency": "VND"
    },
    {
      "course_id": "ux-design-essentials",
      "course_title": "UX Design Essentials",
      "completed_count": 3,
      "net_amount": 648000,
      "currency": "VND"
    }
  ]
}

GET /transactions?status=FAILED&size=3

{
  "items": [
    {
      "transaction_id": "McNfAQLKHu7qnQTupqziQ",
      "user": {
        "name": "An Le",
        "email": "an.le@tenanta.demo"
      },
      "amount": 990000,
      "discount_amount": 0,
      "final_amount": 990000,
      "refund_amount": 0,
      "currency": "VND",
      "status": "FAILED",
      "provider": "SEPAY",
      "payment_method": "BANK_TRANSFER",
      "failure_reason": "Bank timeout",
      "course_titles": [
        "Machine Learning Foundations",
        "Data Science with Python"
      ],
      "created_at": "2026-09-07T08:00:00Z",
      "completed_at": null,
      "expires_at": null
    },
    {
      "transaction_id": "suhaFVBliyIToGJ1QZwez",
      "user": {
        "name": "Minh Tran",
        "email": "minh.tran@tenanta.demo"
      },
      "amount": 499000,
      "discount_amount": 99800,
      "final_amount": 399200,
      "refund_amount": 0,
      "currency": "VND",
      "status": "FAILED",
      "provider": "SEPAY",
      "payment_method": "DIGITAL_WALLET",
      "failure_reason": null,
      "course_titles": [
        "Data Science with Python"
      ],
      "created_at": "2026-09-04T08:55:00Z",
      "completed_at": null,
      "expires_at": null
    },
    {
      "transaction_id": "0ULru2p17fr4CpWDKNQyv",
      "user": {
        "name": "Minh Tran",
        "email": "minh.tran@tenanta.demo"
      },
      "amount": 299000,
      "discount_amount": 0,
      "final_amount": 299000,
      "refund_amount": 0,
      "currency": "VND",
      "status": "FAILED",
      "provider": "SEPAY",
      "payment_method": "DIGITAL_WALLET",
      "failure_reason": "Card declined by issuer",
      "course_titles": [
        "Data Science with Python",
        "Machine Learning Foundations"
      ],
      "created_at": "2026-09-03T11:31:00Z",
      "completed_at": null,
      "expires_at": null
    }
  ],
  "total": 9,
  "page": 1,
  "size": 3,
  "total_pages": 3,
  "has_next": true,
  "has_previous": false
}

GET /transactions/{nanoid} (COMPLETED detail)

{
  "transaction_id": "mTecQoXsf2o3gyrDO1xkx",
  "user": {
    "name": "An Le",
    "email": "an.le@tenanta.demo"
  },
  "amount": 299000,
  "discount_amount": 0,
  "final_amount": 299000,
  "refund_amount": 0,
  "currency": "VND",
  "status": "COMPLETED",
  "provider": "SEPAY",
  "payment_method": "BANK_TRANSFER",
  "failure_reason": null,
  "course_titles": [
    "Web Development Bootcamp",
    "Data Science with Python"
  ],
  "created_at": "2026-09-03T08:38:00Z",
  "completed_at": "2026-09-03T09:00:00Z",
  "expires_at": null,
  "items": [
    {
      "course_id": "web-dev-bootcamp",
      "course_title": "Web Development Bootcamp",
      "amount": 149500,
      "currency": "VND"
    },
    {
      "course_id": "data-science-python",
      "course_title": "Data Science with Python",
      "amount": 149500,
      "currency": "VND"
    }
  ],
  "provider_transaction_id": "SEPAY-TXN-00001-Dyr7OS",
  "provider_order_code": "ORD0000001",
  "provider_payment_url": null,
  "provider_metadata": {
    "bank": "VPBank",
    "ref": "FT2609034598"
  },
  "voucher_code": null,
  "voucher_percent": null,
  "voucher_fixed_amount": null,
  "refund_reason": null,
  "description": "Purchase: Web Development Bootcamp",
  "full_name": "Le Van C",
  "phone_number": "0903056413",
  "address": null,
  "school_name": "RMIT Vietnam",
  "updated_at": "2026-09-03T08:38:00Z"
}

Checks

Backend (`apps/backend`)

yarn format — pass (reformatted new files).
yarn lint — "All checks passed!".
yarn typecheck — no errors in the new/modified files (repo has a large pre-existing baseline elsewhere, unrelated).
yarn test:unit — 1521 passed. The new endpoint tests hit the DB engine so they are auto-marked db and skipped by the -m 'not db' filter (same as the existing platform-stats tests); ran explicitly → 13 + 41 passed.

platform-admin (`apps/platform-admin`)

npm run lint (biome) — clean.
npm run build — compiled successfully, TypeScript passed, all 3 new API routes present.

Browser walk (this run)

Console errors: none.
Failed network requests (status ≥ 400): none.
Mobile horizontal scroll: document.documentElement.scrollWidth = 360 on the Payments tab for both Tenant A and Tenant B at a 360px viewport (no horizontal page scroll).

Open items / observations

Compact money in the table and stat tiles. The shared formatMoney util renders large VND amounts in compact form, so the Amount column and Net revenue tile show e.g. ₫1M for 990,000 / 1,290,000 and ₫7M for the monthly total. The detail sheet shows the exact value (₫990,000). This is existing shared-util behavior, not part of the new tab — flagged only as a readability note; not changed, per scope.
No functional bugs found in the Payments tab during the walk. Filters, search, date range, pagination, month stepper, detail sheet, and tenant isolation all behaved as expected.
Not committed (per spec). App code was not modified.
